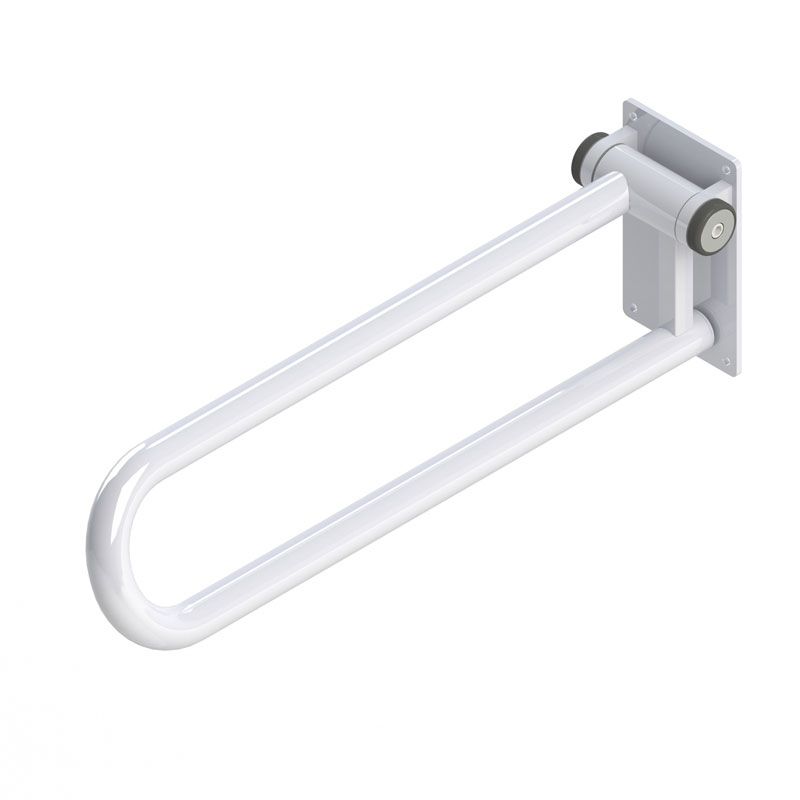

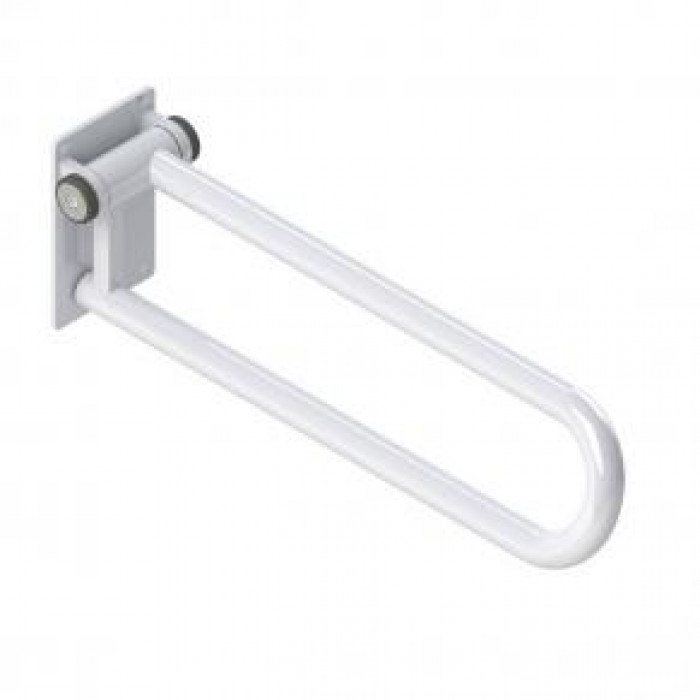

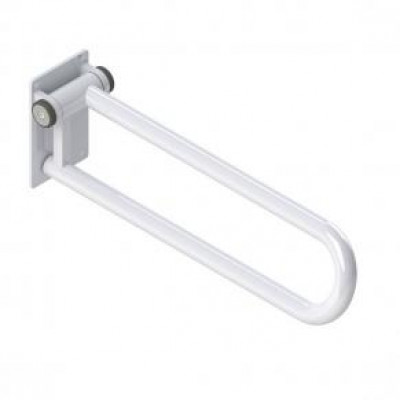

Fold up Side of Toilet Rail, White
Left Hand
Fold up Side of Toilet Rail, White RIGHT
Right Hand

Fold up Side of Toilet Rail, White

Price: From US$204.00
Model #:  APO-WR-WHITE

Product Highlights:

  • Folding Side of Toilet Grab Bar Support
  • Made of Alloy Steel with a White Finish
  • Grab Bars Available in 28" or 32" Lengths
  • Left- or Right-side Configurations

(Customize Quote by Choosing Desired Options)
In Stock What are lead times?

Product Overview

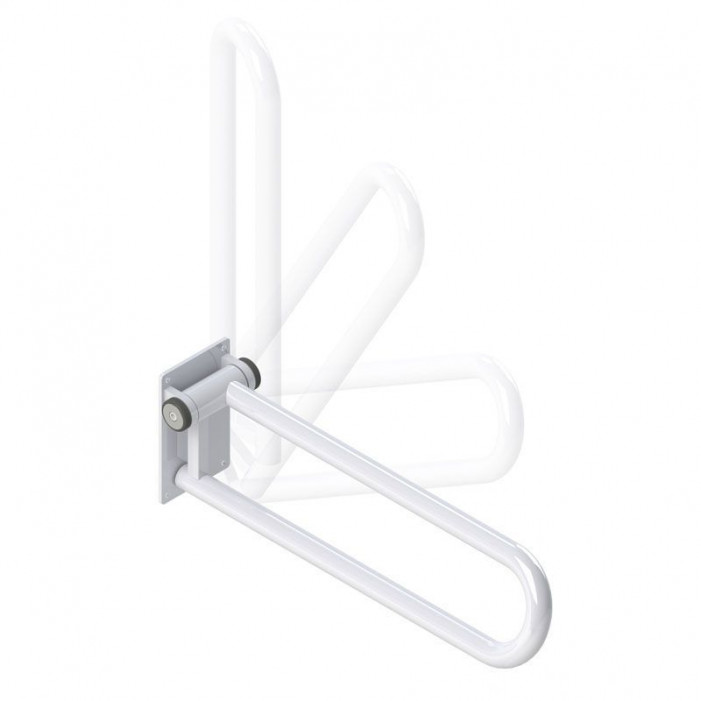

Fold up Side of Toilet Grab Bars help improve mobility around the toilet by providing a sturdy accessible grab bar with offset rails (to help reduce wrist strain when gripping the lower rail). When not in use, these swing up grab bars can fold up against the wall.

Caregivers sometimes worry about folding grab bars unexpectedly falling down while attending to a patient. These Side of Toilet safety bars feature a friction hinge that can hold itself anywhere between the up and down position, allowing custom use.

Install a side of toilet grab bar on both sides of the toilet for maximum support. These fold down grab bars meet and exceed federal guidelines when properly installed with wood backing behind the wall.

Side of Toilet Rail Features:

  • Grab Rail Length: choose 28” or 32”
  • Grab Rail Diameter: 1.5”
  • Grab Rail horizontal offset: 1.5”, available for left or right side.
  • Alloy steel material
  • Anti-microbial white powder coat finish
  • Weight Capacity: 400 lbs.

Added Options:

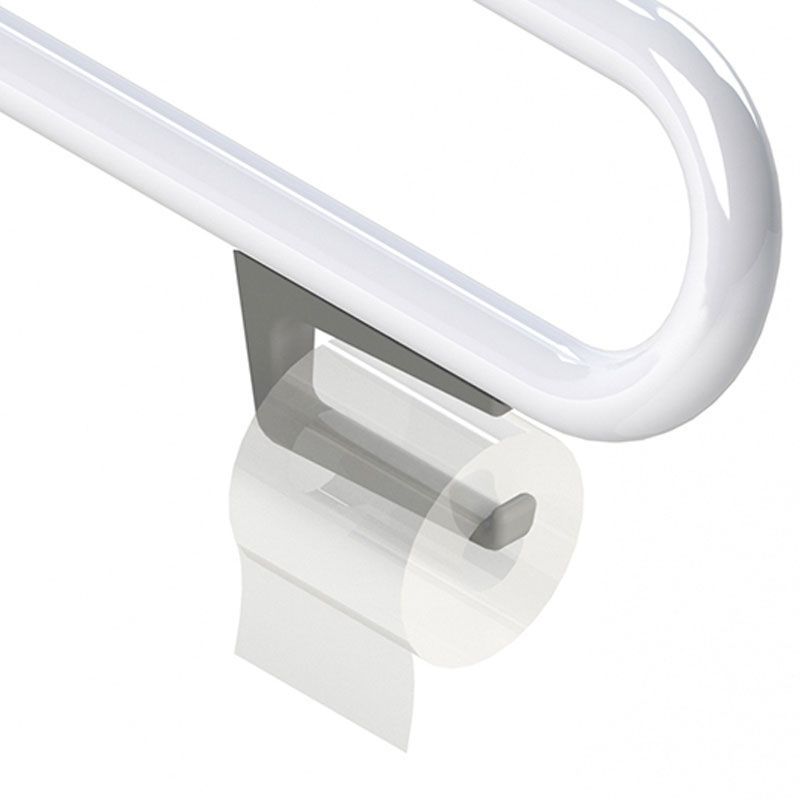

  • Toilet Roll Holder

NOTE: If there is no wood backing behind the wall of the toilet, there are a couple of options to choose from.

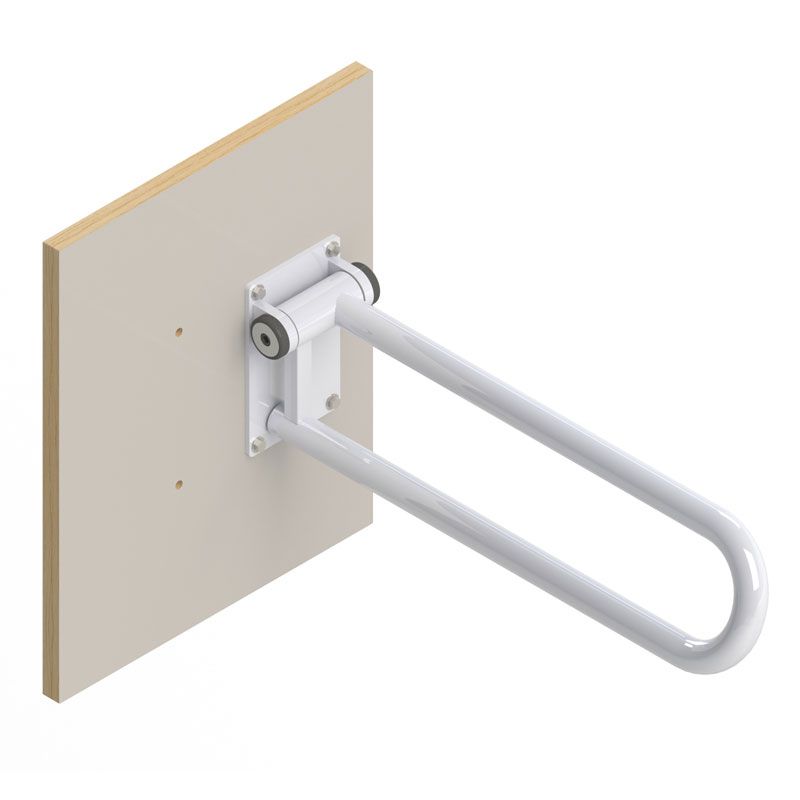

Add a Wood Wall Plate:

High quality Baltic 11-ply wood plate allows installation of Side of Toilet Rail without having to open walls to create structural reinforcement.

Wood Wall Plate Features:

  • Dimensions 19” x 22.75” to extend over wood studs
  • 2 sets of pre-drilled holes reinforced with T-Nut fasteners
  • Unfinished to allow customization

Or

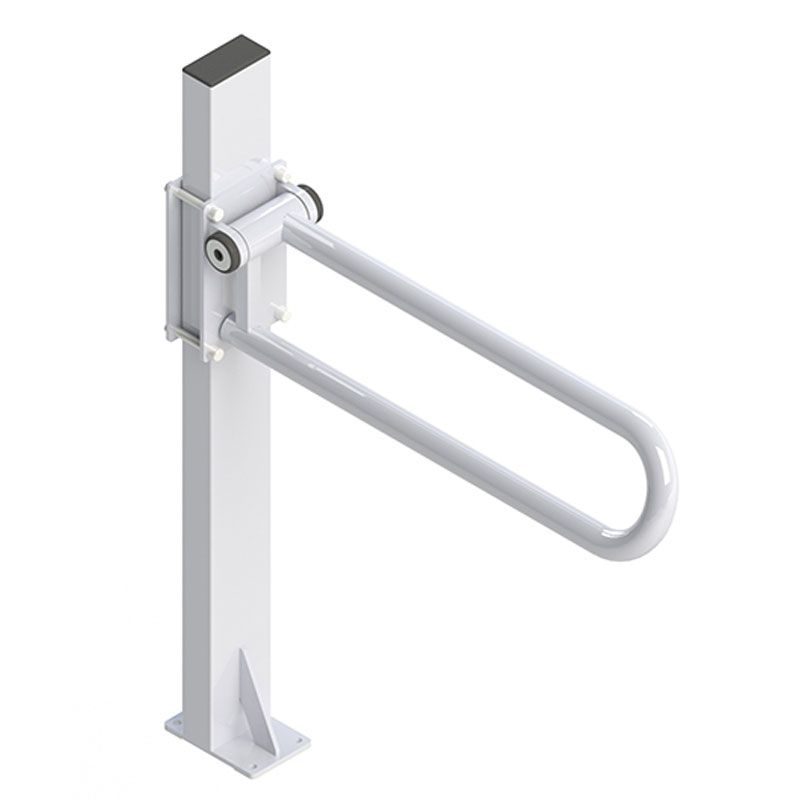

Add a Floor Mast:

If fastening the Side of Toilet Rail to the wall is not an option, the floor mast provides an alternative mounting structure to install the folding grab bars.

Floor Mast Features:

  • Sits 39” high
  • Side of toilet rail is height adjustable between 31”-36”
  • Maintain 400 lbs. weight capacity of the rail
  • White powder coat finish to match
  • Compatible only with model APO-WR-WHITE (28” & 32”, Left or Right)

Downloads

Description Added Size Action
Product Specification (PDF) 14/03/2017 916.32KB Download
Installation (PDF) 14/03/2017 316.31KB Download
Wall Plate Specification (PDF) 14/03/2017 122.21KB Download
Floor Mast Specifications (PDF) 14/03/2017 872KB Download
