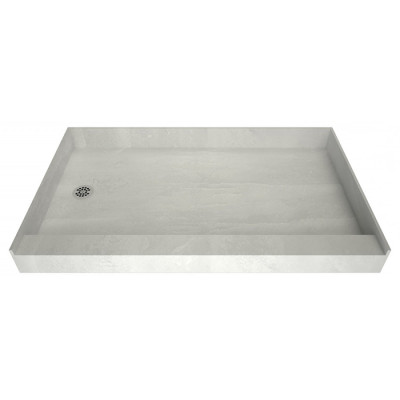

60" x 33" Tile Over Curbed Shower Pan, LEFT Drain

Price: US$922.00 US$599.00
Lowest Price Guaranteed Product Free Shipping
Model #:  APR3360L

Product Highlights:

  • Ready for Tiling Easy Step Shower Pan
  • 7" Splash Walls and an Integrated Drain
  • Apply Tile Directly without Liners or Mudding
  • 60" x 33" Shower Base

(Customize Quote by Choosing Desired Options)
In Stock What are lead times?

Suggested Products

Product Overview

Create an elegant custom tile shower with our easy to install shower base for tile bathrooms. The tile ready shower pans are completely waterproof and leak proof eliminating the need for liners, mudding or hot mopping.

Bathtub Replacement Shower Base for Tiling

The 60" x 33" pre-pitched shower floor base could replace a standard bathtub and has an end drain to match exisiting plumbing. The 4.5" high curb is easy to step over for safe access. The shower pan comes ready to accept tile directly on the surface with the provided epoxy adhesive. Add any kind of tile to the surface to create an beautiful custom shower. The tileable shower pan comes with an integrated easy step threshold and an integrated drain with a round chrome finished plate. Upgrade to a square designer plate for easier installation of square cut tiles.

Add the optional flashing kit to eliminate the possibility of water overflowing the high 7" splash walls or penetrating behind the finished tile work. The Z flashing completes the waterproofing at the seam of the tiling shower base and backer boards of the shower walls.

The tile ready shower pans come with a 3 year limited warranty on manufacturing defects.

Tile Ready Shower Base Features:

  • 60” x 33” Outside dimension
  • 4.5” Curbed threshold
  • Left drain
  • Integrated 2” PVC drains (adaptable to cast iron or ABS)
  • Round polished adjustable drain plate
  • Integrated curb with structural ribbing
  • 7” splash walls
  • Tile sets directly on the surface
  • Comes with epoxy adhesive to adhere tiles to the pan
  • 3 Year Manufacturer’s Limited Warranty

Code Compliance:

  • USL - United States Standard
  • ANSI Z124.2-95 ICC/ANSI
  • A117.1-98
  • ASTM F462-79

Optional Accessories:

  • Upgrade to square drain plate:
    • Polished Chrome
    • Oil Rubbed Bronze
    • Satin (Brushed) Nickel
  • Z flashing system
  • Soap niches
  • Leg ledge

Call to ask about benches and more sizes. Barrier free models available here.

Downloads

Description Added Size Action
Product Specification (PDF) 08/02/2017 152.72KB Download
Installation (PDF) 08/02/2017 2.25MB Download
