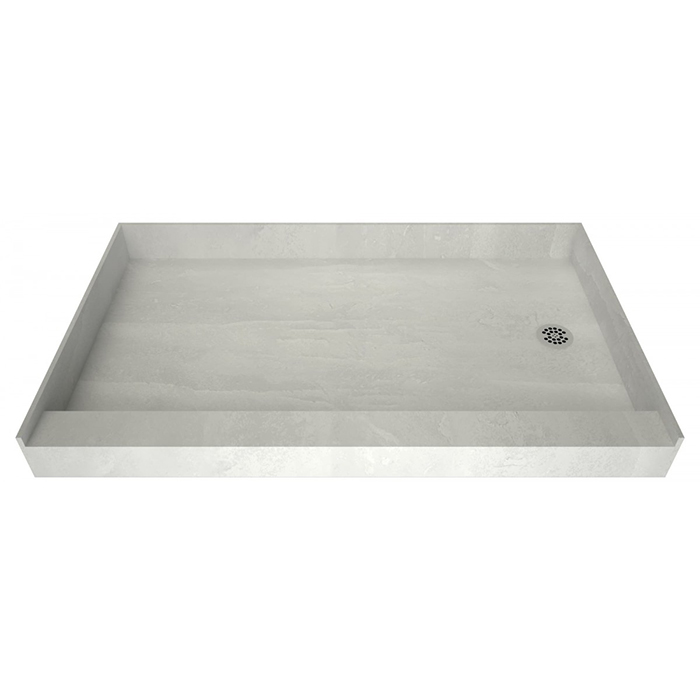

60" x 33" Tile Over Curbed Shower Pan, Right Drain

In Stock


60" x 33" Tile Over Curbed Shower Pan, Right Drain

In Stock
Model: APR3360R
Made in America

US$709.00 Save 35% US$1,090.00

Model: APR3360R
Made in America

* Optional Upgrade to Square Drain Plate: Round Chrome Drain Plate (Default)

In Stock
In Stock
Qty

Create an elegant custom tile shower with our easy to install shower base for tile bathrooms. The tile ready shower pans are completely waterproof and leak proof eliminating the need for liners, mudding or hot mopping.

Bathtub Replacement Shower Base for Tiling

The 60" x 33" pre-pitched shower floor base could replace a standard bathtub and has an end drain to match exisiting plumbing. The 4.5" high curb is easy to step over for safe access. Add any kind of tile to the surface to create an beautiful custom shower. The tileable shower pan comes with an integrated easy step threshold and an integrated drain with a round chrome finished plate. Upgrade to a square designer plate for easier installation of square cut tiles.

Add the optional flashing kit to eliminate the possibility of water overflowing the high 7" splash walls or penetrating behind the finished tile work. The Z flashing completes the waterproofing at the seam of the tiling shower base and backer boards of the shower walls.

The tile ready shower pans come with a 3 year limited warranty on manufacturing defects.

Highlights

Tile Ready Shower Base:

  • 60” x 33” Outside dimension
  • 4.5” Curbed threshold
  • Right drain
  • Integrated 2” PVC drains (adaptable to cast iron or ABS)
  • Round polished adjustable drain plate
  • Integrated curb with structural ribbing
  • 7” splash walls
  • Tile sets directly on the surface
  • 3 Year Manufacturer’s Limited Warranty

Code Compliance:

  • USL - United States Standard
  • ANSI Z124.2-95 ICC/ANSI
  • A117.1-98
  • ASTM F462-79

Optional Accessories:

  • Upgrade to square drain plate:
    • Polished Chrome
    • Oil Rubbed Bronze
    • Satin (Brushed) Nickel
  • Z flashing system
  • Soap niches
  • Leg ledge

Call to ask about benches and more sizes.

Downloads

Product Specification (PDF) 08/02/2017 154.14KB
Installation (PDF) 21/05/2021 366.06KB
