63" x 42" Tile Over Barrier Free Shower Pan, Trench Drain

In Stock

63" x 42" Tile Over Barrier Free Shower Pan, Trench Drain

In Stock
Model: APRT63X42BFC-PANS
Made in America

From US$1,012.00

Model: APRT63X42BFC-PANS
Made in America

* Select Trench Drain Grate Style for 63" x 42" Barrier Free, Tile Over Shower Pan

* Select Trench Drain Grate Style for 63" x 42" Barrier Free, Tile Over Shower Pan

US$973.00 US$1,012.00 US$973.00
US$973.00 US$1,012.00 US$973.00
In Stock
In Stock
Qty

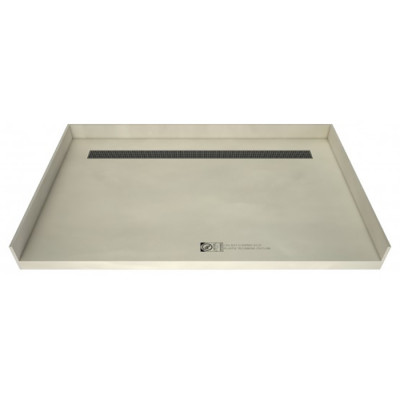

Our Linear Drain Shower Base for tiling has a barrier free threshold for accessible bathrooms. Finish the tile redi shower base with ceramic, marble or stone tiles for an upscale designer shower to suit your bathroom design, personal preference and accessibility needs.

Trench Drain Shower Pans Barrier-Free

The Barrier free trench drain tiling shower base comes ready to accept tile directly on the surface without the need for liners, mudding or hot mopping. The shower base with channel drain is pitched toward the molded-in trench drain near the back. Choose from three styles of drain grates to complete your tile shower base system:

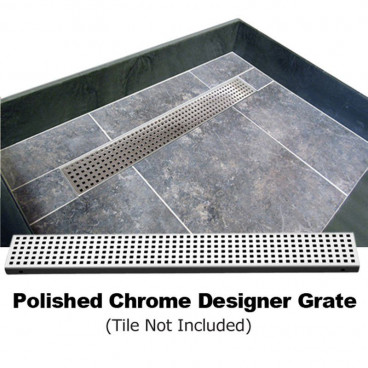

Polished Chrome Designer Grate

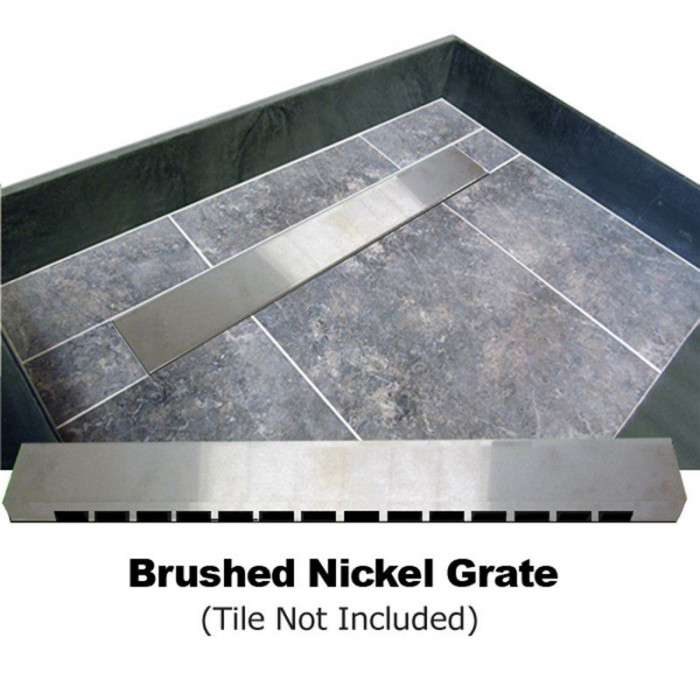

Brushed Nickel Solid Grate

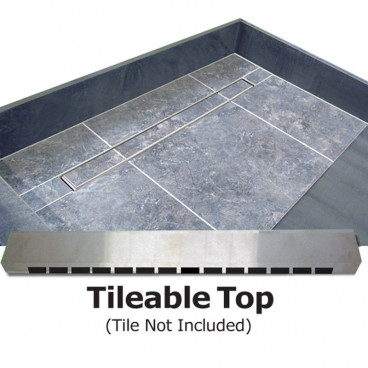

Tileable Grate

The low threshold allows for easy access for aging in place. The easy to install, linear drain shower bases are leak proof and mold resistant. Recent improvements to the product allow you to use a wide array of readily available modified thin sets to install tiles onto the shower pan.

Add the optional Z flashing system to complete the waterproofing system between the shower pan and custom tile walls. The shower pans for tile bathrooms come with a 3 year limited warranty on manufacturing defects.

Highlights

Trench Drain Tile Ready Shower Base:

  • 63” x 42” Outside dimension
  • 2.30” threshold height
  • Back trench drain
  • Integrated 2” PVC drains (adaptable to cast iron or ABS)
  • Three drain grate styles to choose from:
    • Polished Chrome Designer Grate
    • Brushed Nickel Solid Grate
    • Tileable Grate
  • Integrated curb with structural ribbing
  • 6” splash walls
  • Tile sets directly on the surface
  • 3 year manufacturer’s limited warranty
  • Made in America

Code Compliance:

  • UL listed in USA and Canada
  • IAPMO/ANSI Z124.1.2 (2005)
  • ASTM F 462
  • ICC/ANSI A117
  • ICC/ANSI A117.1
  • CSA-B45.0
  • CSA-B45.5
  • ANSI/ASME A112.18.2
  • CSA B125.2 (2011)

Available Accessories:

  • Z flashing system
  • Soap niches
  • Leg ledges

Call us to ask about benches, and more sizes. Easy step models also available here.
